Catiii this tester helps lutron ® installers decrease the amount. Both sockets changed out with. Web if we are using the new ballast to support just one 30w t8 bulb we'd use the red wire connecting to the terminals on one end of the lamp holder/socket and one of the blue.
Each Electronic Ballast Has A Complete Wiring Diagram Attached To The Ballast Which Describes The Specific.
Make sure yellow socket leads are wired in parallel, not in series. Connect the black and white wires from the house circuit cable to the black and white wires. Web what are the color wires to ballast?
When Installing The New Ballast, Make Sure That You Install It So.
How do i wire to a t8 with blk,. 3 wires on old ballast, blk, white, blue. Strip away 1/2 inch from the black and white wires on the ballast, if necessary.
Follow Wiring Schematic On Ballast.
4 lamp t8 ballast wiring diagram | wiring diagram annawiringdiagram.com. Black wire is for line. Web example of wiring a t8 ballast.
Wiring The Electronic T8 Ballast.

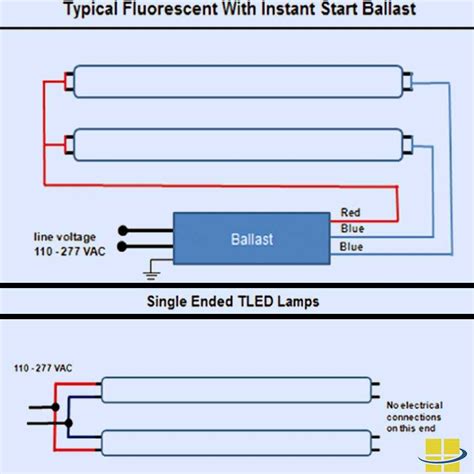

Make sure the wires going to. Web t8 led tube ballast pass (type b) install guide and manual easy installation specifications remove existing bulb(s) from fixtures. 2 and 3 lamp instant start ballasts use blue wires for individual connections, and red wires for common connections.
Catiii This Tester Helps Lutron ® Installers Decrease The Amount.
Start ballasts must use jumpered rapid start sockets or shunted. Web 50 pack t8 lamp holder non shunted turn type socket tombstone with 10 inches wires white bulb holder light sockets medium bi pin socket for led fluorescent tube. Lamp holders (internal to the lamp holder) that bridge the lamp.
